CSV to LaTeX Table: Practical Guide for Publication-Ready Tables
Learn how to convert CSV data into clean LaTeX tables for reports and publications. This step-by-step guide covers manual and automated approaches, formatting tips, and best practices for publication-ready results.
You will convert a CSV file into a LaTeX-friendly table and insert it into your LaTeX document. This guide covers prepping the CSV, choosing a tabular environment, formatting columns, and exporting automated options. You’ll learn manual methods and automation tips, plus common pitfalls like escaping special LaTeX characters. Additionally, you'll see examples and a quick-reference checklist.
What is csv to latex table and why it matters
According to MyDataTables, the task of turning a CSV into a LaTeX table is a common workflow for researchers, analysts, and writers who publish in PDF or academic formats. A well-crafted csv to latex table ensures reproducibility, reduces manual editing time, and produces publication-ready visuals that align with journal formatting rules. In many teams, CSV data serves as the source of truth, and LaTeX provides a precise, typographically consistent presentation. By mastering this process, you create a dependable pipeline from raw data to clean, consistent tables embedded in your LaTeX documents. Alongside general LaTeX knowledge, this topic touches on the tabular environment, the booktabs package for improved aesthetics, and sometimes the siunitx package for numeric alignment.
In practical terms, the csv to latex table workflow enables you to: preserve headers, control column alignment, manage long tables, and add helpful captions and labels for cross-referencing. Whether you are drafting a research paper, a technical report, or a slide deck that uses LaTeX beamer, understanding how CSV maps to LaTeX syntax saves time and avoids errors during manuscript preparation.
Preparing your CSV for LaTeX
The first step is to inspect the CSV and ensure it is clean enough for LaTeX rendering. Start by confirming that there is a header row with unambiguous names, and that the delimiter is consistent (comma, semicolon, or tab depending on locale). Remove any extraneous footer lines, and check for non-text fields that require special handling in LaTeX. If your CSV contains quoted fields with embedded commas, verify that the quotes are balanced and that you can reliably parse the data. A clean CSV reduces downstream escaping work and helps align columns accurately in LaTeX.
At this stage, consider the desired LaTeX column alignment (left, center, right) and whether numeric columns should align on the decimal point. Make a quick sketch or table mapping from CSV columns to LaTeX columns to minimize late-stage guesswork. This preparation aligns with best practices discussed in MyDataTables Analysis, 2026 for reproducible data-to-text pipelines.
Manual conversion: building a LaTeX tabular from CSV
Manual conversion involves creating a LaTeX tabular block that mirrors the CSV structure. You’ll declare the column alignment, insert the header row, and then paste each CSV row as a LaTeX table row, separated by line breaks. Start with a small example: a header line that becomes the LaTeX header row, then a corresponding data row. As you scale, consider using a simple script to generate the lines from the CSV and paste them into your LaTeX document. This method is ideal for learning the syntax and understanding the data-to-table mapping.
Remember to include the proper LaTeX line breaks and end-of-row markers (\). If your data includes non-text characters, ensure they are escaped according to LaTeX conventions. This approach favors transparency and learning and pairs well with an initial skeleton document.
Tools & Materials
- CSV file(Include header row if present; ensure consistent delimiter and encoding (prefer UTF-8))
- LaTeX editor or compiler(TeXShop, TeXworks, Overleaf, or similar tools)
- Text editor(For editing LaTeX source; e.g., VS Code, Sublime Text)
- Python/pandas or csvkit (optional)(Useful for automation or large CSVs)
- Sample LaTeX document skeleton(Helps test the output quickly)

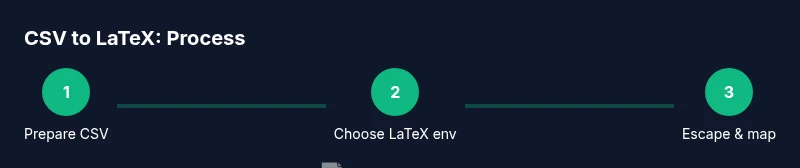

Steps
Estimated time: 90-120 minutes
- 1
Inspect the CSV
Open the CSV and verify there is a clear header row and uniform delimiters. Note column names and the number of columns. This step reduces surprises when mapping to LaTeX columns.
Tip: If you see stray quotes or embedded delimiters, fix them before proceeding. - 2
Decide the LaTeX environment
Choose between a standard tabular, longtable for multi-page data, or a booktabs version for aesthetic tables. Your choice affects column separation marks and package requirements.
Tip: For long data, longtable is usually a better fit than tabular. - 3
Create a LaTeX skeleton
Set up a minimal LaTeX structure with the tabular environment and a placeholder for rows. Include a caption and a label for cross-referencing in your document.
Tip: Keep the skeleton separate so you can swap in the generated rows later. - 4
Map CSV columns to LaTeX columns
Create a one-to-one mapping from each CSV column to a LaTeX column. Decide alignment for each column (l, c, r).
Tip: Consistency in alignment improves readability. - 5
Escape LaTeX specials in data
Escape characters such as # $ % _ & { } ~ ^ \ to prevent compilation errors. Consider a small preprocessing step for all fields.
Tip: If you automate, apply escaping before inserting rows. - 6
Populate the table rows
Transfer each CSV row into a LaTeX table row, using proper separators (| or spaces depending on your environment) and the end-of-row marker \\.
Tip: Use a script for larger CSVs to avoid manual copy-paste errors. - 7
Add caption and label
Insert a descriptive caption and a \\label for cross-referencing within the document. This improves navigability in the final PDF.
Tip: Place the label after the caption inside the table float if using figures. - 8
Compile and troubleshoot
Run the LaTeX compiler and address any errors. Common issues include missing packages, misaligned columns, or unescaped characters.
Tip: Check the log file for precise line numbers and error messages. - 9
Automate for future CSVs
If you expect recurring CSV updates, set up a small automation that reads the CSV and outputs LaTeX table rows, reducing manual effort.
Tip: Automation scales well with pandas-to-LaTeX or csvkit pipelines.
People Also Ask
What is the best LaTeX environment for large CSVs?
For large datasets, longtable or longtabu is often preferable to a standard tabular, as they handle multi-page content more gracefully and support captions across pages.
For large CSVs, longtable or similar options are usually best.
How do I escape special characters in CSV fields for LaTeX?
Escape characters like # $ % _ & { } ~ ^ \ or wrap the content in braces where appropriate. If automating, apply a centralized escaping function before exporting to LaTeX.
Escape special characters before inserting into LaTeX.
Can I automate CSV to LaTeX table generation with Python?
Yes. Use pandas to read the CSV and formatOutput to LaTeX, or build a small script to translate rows into LaTeX syntax with proper escaping and alignment.
Yes, Python makes automation straightforward.
What if headers contain spaces or unusual characters?
Normalize headers to simple ASCII names or wrap them in braces as needed in LaTeX. Keep headers consistent with column count to avoid misalignment.
Normalize headers to keep things consistent.
How can I align numeric columns in LaTeX?
Use the siunitx package or align decimals with appropriate column specifiers to ensure decimal points line up across rows.
Use siunitx for decimal alignment.
Which packages improve CSV-to-LaTeX workflows?
Packages like booktabs for prettier rules, siunitx for numbers, and longtable for multi-page tables often improve reliability and presentation.
Booktabs and siunitx are popular choices.
Watch Video
Main Points
- Plan column alignment before writing LaTeX.
- Use a skeleton to prevent repeated edits.
- Escape all LaTeX-special characters.
- Automate repetitive conversions when possible.
- Booktabs improves table aesthetics and readability.
